Tired of bloated files or broken references in your drawings? It’s time to master XREFs, one of the most powerful (and misunderstood) features in AutoCAD.
Whether you're collaborating on a team or managing multiple plan sheets, understanding how XREFs work will save you hours of frustration.
Here’s a crash course to get you using them like a pro:
What is an XREF?
XREF = External Reference It lets you attach another DWG (or image, PDF, etc.) into your current drawing without copying everything into the file. Think of it like a live link to another drawing.
ATTACH vs OVERLAY – What’s the Difference?
When adding an xref to a drawing you'll have the option to choose between two types:
ATTACH ✅ XREF will appear in the host file ✅ AND will be included in any future files that XREF your file (nested XREFs) Great when you want to build stacked references or include backgrounds through multiple levels.
OVERLAY ✅ XREF shows up in the current file 🚫 But does not carry through into future XREFs (not nested) Use this when you don’t want to pass references down the chain. (this Should be your default!)
Pro Tip: Use OVERLAY when collaborating to avoid circular references and layer chaos!
More XREF Power Tips:
✅ Use relative paths to avoid broken links when files move ✅ Bind XREFs only when you’re sending out final versions ✅ Layer isolate XREFs using layer filters or freezing in viewports ✅ Use XOPEN to quickly open an XREF for editing ✅ Turn on “XREF Fade” in Options to reduce visual clutter
If you’re still inserting drawings manually or copying and pasting between files, it’s time to learn XREFs. Mastering them will make you faster, cleaner, and easier to collaborate with.
Learn Xrefs and all the must know AutoCAD workflows and tools in my AutoCAD Fundamentals & Workflows Course now: Https://cadintentions.com/hurry
👉 What’s your biggest pain point with XREFs? Drop it below and let’s fix it together 👇
CAD Intentions

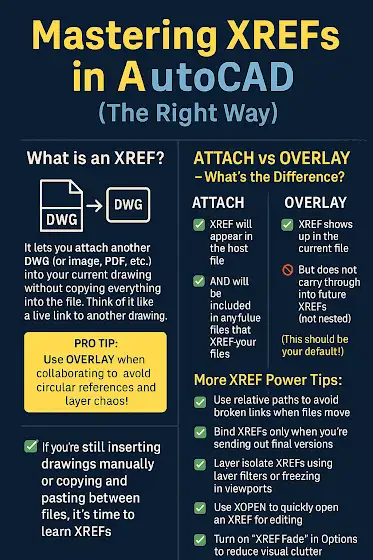

Mastering XREFs in #AutoCAD (The Right Way)
Tired of bloated files or broken references in your drawings?
It’s time to master XREFs, one of the most powerful (and misunderstood) features in AutoCAD.
Whether you're collaborating on a team or managing multiple plan sheets, understanding how XREFs work will save you hours of frustration.
Here’s a crash course to get you using them like a pro:
What is an XREF?
XREF = External Reference
It lets you attach another DWG (or image, PDF, etc.) into your current drawing without copying everything into the file. Think of it like a live link to another drawing.
ATTACH vs OVERLAY – What’s the Difference?
When adding an xref to a drawing you'll have the option to choose between two types:
ATTACH
✅ XREF will appear in the host file
✅ AND will be included in any future files that XREF your file (nested XREFs)
Great when you want to build stacked references or include backgrounds through multiple levels.
OVERLAY
✅ XREF shows up in the current file
🚫 But does not carry through into future XREFs (not nested)
Use this when you don’t want to pass references down the chain. (this Should be your default!)
Pro Tip: Use OVERLAY when collaborating to avoid circular references and layer chaos!
More XREF Power Tips:
✅ Use relative paths to avoid broken links when files move
✅ Bind XREFs only when you’re sending out final versions
✅ Layer isolate XREFs using layer filters or freezing in viewports
✅ Use XOPEN to quickly open an XREF for editing
✅ Turn on “XREF Fade” in Options to reduce visual clutter
If you’re still inserting drawings manually or copying and pasting between files, it’s time to learn XREFs.
Mastering them will make you faster, cleaner, and easier to collaborate with.
Learn Xrefs and all the must know AutoCAD workflows and tools in my AutoCAD Fundamentals & Workflows Course now: Https://cadintentions.com/hurry
👉 What’s your biggest pain point with XREFs? Drop it below and let’s fix it together 👇
