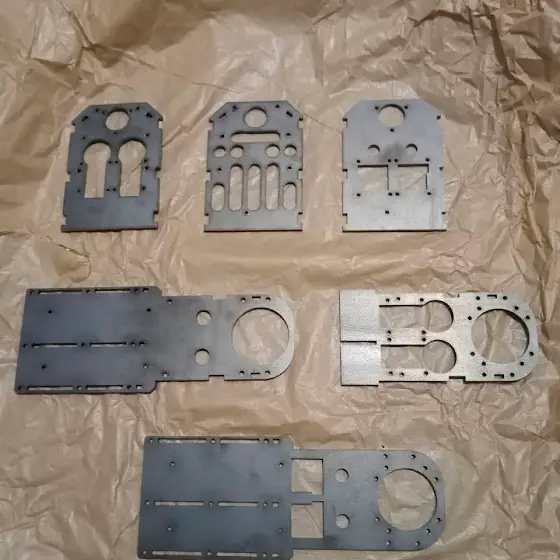

Update: Our engineer Alan has received a batch of components for the manipulator assemblies — including clamps and metal bracket parts. Prototype assembly is planned for the beginning of next year.
15 hours ago | [YT] | 3
View 0 replies
Robonine
We've published a comprehensive evaluation of the Feetech STS3250 servo actuator.
Key Findings:
- Speed: 77.6 RPM (exceeds spec by 3.2%)
- Backlash: 0.43° (within 0.5° limit)
- Repeatability: ±0.02mm at 95mm radius
- Peak torque: 48 kg·cm
- Sustained torque: ~25 kg·cm after thermal protection
Full review: robonine.com/feetech-sts3250-smart-actuator-evalua…
2 weeks ago | [YT] | 2
View 0 replies
Robonine

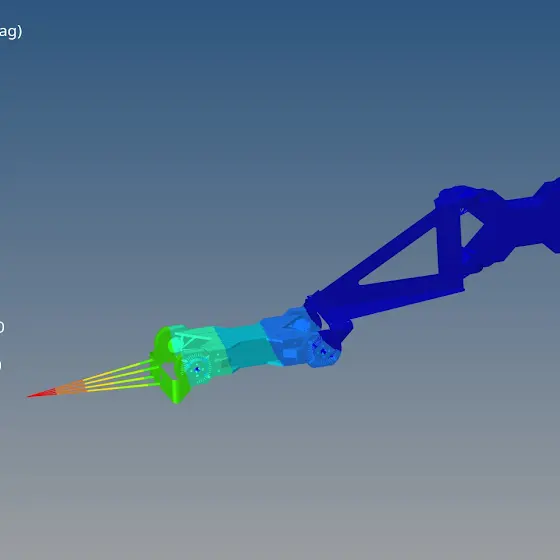

Proud to share the results of our engineering team’s recent work at Robonine:
• Together, we applied advanced topology optimization to redesign critical brackets of the manipulator, achieving a 57–76% reduction in structural deflection.
• Our updated model also demonstrated a major stress decrease — from 93 MPa down to 25 MPa — all while staying within the allowed weight increase.
• Although we didn’t fully reach the target tip deviation of 0.3 mm (best achieved: 0.41 mm), the project gave us valuable insights and a solid foundation for the next design iteration.
1 month ago (edited) | [YT] | 2
View 0 replies
Robonine
We've created a HEX mesh and started analyzing the model's stiffness. Our goal is to achieve a maximum displacement of 0.3 mm under full load!
#Engineering #FiniteElementAnalysis #FEM #MechanicalDesign #Innovation
1 month ago | [YT] | 1
View 0 replies
Robonine
With Robonine team we’re preparing an in-depth review of the Feetech STS-3250 servo motor — exploring its performance, features, and potential for robotics and automation projects.
#Feetech #STS3250 #ServoMotor #Robotics #Automation #Engineering #TechReview #Innovation #Electronics
1 month ago (edited) | [YT] | 2
View 0 replies
Robonine

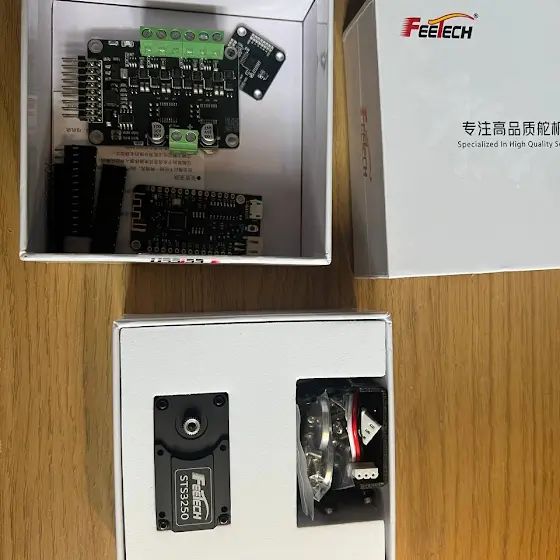

🚀 Exciting delivery! Our new Feetech STS3250 smart servos have just arrived.
We’re getting ready to start load testing and positioning accuracy evaluation soon — stay tuned for detailed results, data, and insights.
These servos promise impressive torque and precision, and we can’t wait to see how they perform in real-world scenarios.
#robotics #servo #engineering #testing #mechatronics #automation #Feetech
2 months ago | [YT] | 1
View 0 replies
Robonine
With Robonine team just completed a new article: In-depth testing of the Feetech STS3215 servomotor — the popular choice for open-source robotic projects like SO-Arm and others. We've conducted comprehensive performance analysis covering backlash, repeatability, torque characteristics, and thermal behavior. Discover how this affordable servo performs in real-world robotic applications, including its 12-bit magnetic encoder, metal gearbox design, and overload protection mechanisms.
Link: robonine.com/testing-of-feetech-sts3215-servomotor…
#Robotics #Servomotor #EngineeringTesting #Automation #FeetechSTS3215 #OpenSourceRobotics #SOArm #RoboticSystems #ControlSystems #MotorTesting #AffordableRobotics #ClosedLoopControl
2 months ago (edited) | [YT] | 1
View 0 replies
Robonine

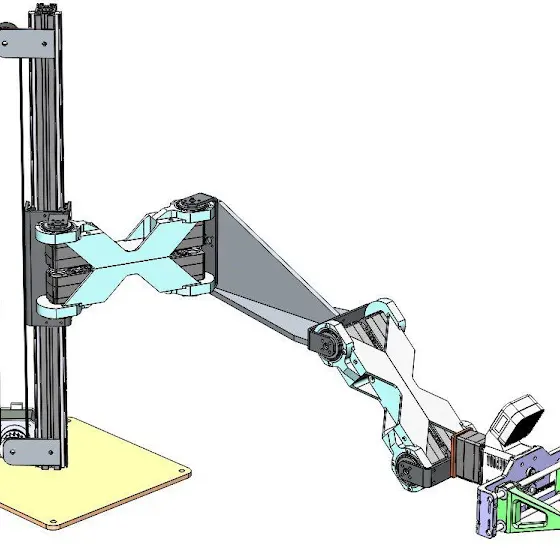

Our engineering team has updated the connection design.
We increased the folding angles of the joints to 270 degrees.
The manipulator can now fold completely.
#Engineering #DesignUpdate #Mechanical #Manipulator #Innovation
2 months ago | [YT] | 1
View 0 replies
Robonine

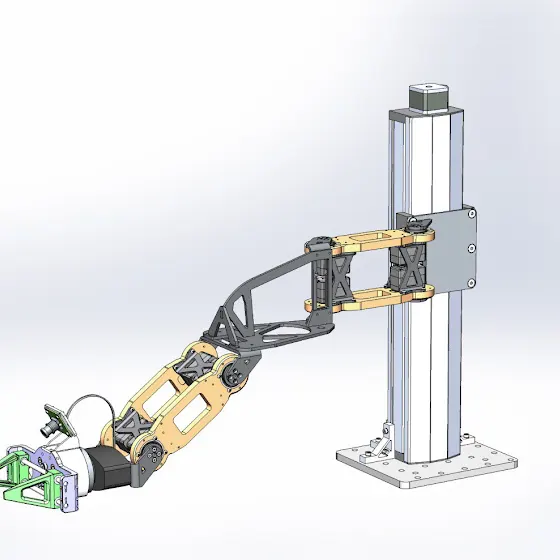

Back in August, the production cost of our prototype manipulator was estimated at ~$1600 per unit (without assembly), or ~$1000 in a 100-unit batch. Our current goal: cut prototype part costs below $800, and small-series production to around $600.
- To achieve this, we simplified the design significantly:
- Reduced degrees of freedom by one (removed forearm rotation)
- Cut required part volume by ~5×
- Lowered payload capacity from 3 kg to 1.1 kg
#Robotics #Prototyping #Manufacturing #Automation #RoboticArm #Engineering
2 months ago (edited) | [YT] | 1
View 0 replies
Robonine
Support us in Product Hunt! Waiting for your comments!
producthunt.com/products/robo9-2
@ProductHunt #robotics #robots #producthunt
4 months ago | [YT] | 1
