🔥 “Oil Pan Explained | Function, Parts & Common Problems | Car Engine Basics.


🚗 CAR ENGINE OIL PAN – COMPLETE SIMPLE EXPLANATION

1. What is an Oil Pan?
*The oil pan is a metal container placed at the bottom of the engine.
*It stores the engine oil that lubricates all moving parts inside the engine.
*Think of it as the oil storage tank of the engine.
*It is also called the Sump.

2. Location of Oil Pan
*Fitted at the lowest part of the engine (under the crankcase).
*Bolted with oil pan bolts and sealed with an oil pan gasket.
*Easily visible from under the car.

3. Purpose / Function of Oil Pan
A. Stores Engine Oil
Main function - Holds the required amount of oil (usually 3–6 liters, depending on engine size).

B. Collects Returning Oil
After oil lubricates engine parts (pistons, crankshaft, camshaft, bearings), it drains back into the oil pan due to gravity.

C. Helps in Cooling the Oil
*The oil pan is made of aluminum or steel.
*Airflow under the car removes heat from the oil pan.
*Some oil pans have cooling fins to improve heat dissipation.

D. Allows Oil Circulation
*The oil pump sucks oil from the pan through a strainer.
*Then oil is circulated to all engine parts.
*Oil returns back to the pan → cycle repeats.

E. Provides a Place for Drain Plug
*The oil drain plug is fitted at the bottom of the pan.
*Used during engine oil changes.

4. Construction of Oil Pan
*Oil pans are made from:

(1) Stamped Steel
Strong and affordable.
Mostly used in passenger cars.

(2) Cast Aluminum
Lightweight, better cooling.
Used in modern engines.

5. Shape
*Deep enough to store oil.
*Designed to prevent oil movement during braking/turning.

6. Parts of Oil Pan
*Oil pan body
*Oil drain plug
*Oil pan gasket
*Cooling fins (sometimes)
*Baffles (internal walls)

7. What are Baffles?
Inside the oil pan, baffles are small metal plates that control oil movement.

8. Why are baffles needed?
*When the car:
*brakes suddenly,
*accelerates quickly,
*climbs hills,
*takes sharp turns, the oil may shift to one side.
Baffles keep the oil steady near the oil pump pickup so the engine always gets an oil supply.

9. Working Principle of Oil Pan
*Here is the simple oil flow cycle:
*Oil is stored in the oil pan.
*Oil pump sucks oil through the strainer.
*Oil goes through oil filter → then circulated to engine parts.
*Oil lubricates and cools the engine.
*Used oil returns back to the oil pan.
*Cycle repeats continuously whenever the engine runs.

10. Symptoms of a Bad Oil Pan
A. Oil Leaks Under the Car
Most common symptom.

B. Low Engine Oil Level Warning
Leak reduces oil quantity.

C. Burning Oil Smell
Oil drops on exhaust pipe.

D. Engine Overheating
Not enough oil for cooling and lubrication.

E. Visible Damage
Dents or cracks if the car hits a stone or speed bump.

11. Causes of Oil Pan Problems
*Hitting speed breakers or road debris.
*Worn or damaged gasket.
*Over-tightening the drain plug (threads get damaged).
*Rust or corrosion on old vehicles.
*Loose oil pan bolts.

12. Oil Pan Leak Symptoms
*Oil droplets under the engine.
*Wet or oily oil-pan surface.
*Engine oil level drops quickly.
*Burning smell during driving.
*WARNING light on instrument cluster.

13. Oil Pan Designs and Types
(A) Wet Sump Oil Pan
*Most common type.
*Oil is stored in the oil pan itself.
*Simple and inexpensive.

(B) Dry Sump Oil System
*Used in race cars and sports cars.
*Oil is stored in an external tank.
*Allows better lubrication and no oil starvation.

14. Advantages of Oil Pan
*Simple oil storage solution.
*Helps cool the engine oil.
*Easy maintenance (oil change).
*Reduces engine noise.

15. Maintenance of Oil Pan
*Regularly check for oil leaks.
*Replace gasket during servicing if required.
*Do not over-tighten the drain plug.
*Inspect for cracks or dents.
*Use correct grade engine oil.

16. Oil Pan Leak Repair
*Replace the damaged gasket.
*Use proper torque for bolts.
*If pan is damaged → repair or replace.
*Fix stripped drain plug threads using: Helicoil insert, or Oversize drain plug.

Simple Summary

👉 Oil pan = Engine's oil storage tank
👉 Stores oil, cools oil, and returns oil for recirculation
👉 Fitted at bottom of engine
👉 Problems: leaks, cracks, gasket damage
👉 Must be checked regularly to protect engine




#oilpan #carengine #engineparts #automaintenance
#carrepair #mechanictraining #carknowledge
#engineoil #autosystem #autorepair
#carservice #enginetechnology #automobiletraining


Thank you

Skip the Carousel

1 2 3

1 week ago (edited) | [YT] | 5

Master Mechanic Abhishek

🌬️ CAR A/C CONDENSER – COMPLETE DETAILED EXPLANATION

🔍 1. What is an A/C Condenser?

The A/C condenser is like a small radiator that sits in front of the car’s main engine radiator.
Its job is to remove heat from the hot refrigerant gas coming out of the compressor.

It changes the refrigerant from a hot gas into a cool liquid by releasing heat to the outside air.

You can think of it as a heat releaser — the opposite of the evaporator (which absorbs heat).

⚙️ 2. Main Function of the Condenser

👉 The condenser’s main function is to:

Cool the hot refrigerant gas that comes from the compressor.

Change the gas into a high-pressure liquid by removing heat.

Send the cooled liquid refrigerant to the receiver-drier or expansion valve for the next stage.

In simple words:

Hot gas in → Heat out → Liquid out

📍 3. Location of the Condenser

Found in front of the car radiator, near the front bumper.

Positioned there because it needs maximum airflow from the moving car or the cooling fan.

When the car moves, air passes through the condenser fins to cool the refrigerant inside.

🧩 4. Construction (Main Parts of a Condenser)

Let’s see what parts make up a typical car A/C condenser 👇

🧱 (a) Aluminum Tubes

The refrigerant flows through these thin aluminum tubes.

The tubes are arranged in parallel or serpentine shape to increase the cooling area.

🌪️ (b) Cooling Fins

Thin metal fins are attached to the tubes.

These fins increase surface area so air can remove more heat quickly.

Made from aluminum for better heat transfer.

🔄 (c) Inlet and Outlet Ports

Inlet port: Hot, high-pressure gas from the compressor enters here.

Outlet port: Cool, high-pressure liquid refrigerant leaves here and goes to the receiver/drier.

🔧 (d) Mounting Brackets

Used to fix the condenser securely in front of the radiator or A/C module.

🧊 (e) Internal Passages or Loops

Modern condensers use multi-flow (parallel flow) or serpentine designs to improve efficiency.

These designs make refrigerant flow through many small channels for better cooling.

🔄 5. Step-by-Step Working of Condenser

Here’s how the condenser works in a simple cycle 👇

1️⃣ Hot Gas Enters:
The refrigerant comes from the compressor as a hot, high-pressure gas (around 70°C–80°C).

2️⃣ Heat Dissipation:
As the gas passes through the condenser tubes, airflow (from fan or car movement) passes over the fins.
This removes heat from the refrigerant.

3️⃣ Condensation:
When enough heat is removed, the gas turns into a liquid.
The refrigerant remains high pressure, but temperature drops to around 35°C–40°C.

4️⃣ Liquid Outlet:
The now cool liquid refrigerant exits the condenser and moves to the receiver-drier or expansion valve, ready for the next stage.

🌡️ 6. Temperatures and Pressures

Inlet (from compressor):

Temperature: around 70°C–80°C

Pressure: 150–250 psi

State: Hot high-pressure gas


Outlet (to receiver/drier):

Temperature: around 35°C–40°C

Pressure: Still high pressure

State: Warm high-pressure liquid


🧠 7. Why the Condenser is Important

✅ It removes the heat absorbed from the cabin air by the refrigerant.
✅ It prepares the refrigerant to be expanded and cooled again in the evaporator.
✅ Without the condenser, the A/C system cannot cool — refrigerant would stay hot and gaseous.

⚙️ 8. Types of Condensers Used in Cars

1️⃣ Tube-and-Fin Condenser:

Older design.

Simple tubes with fins around them.

Larger and less efficient.

2️⃣ Serpentine Condenser:

Single long tube that moves like a snake (serpent).

Better heat transfer, compact design.

3️⃣ Parallel Flow Condenser (Modern Type):

Many small channels and flat tubes.

High efficiency and smaller size.

Used in most modern vehicles.

⚠️ 9. Common Condenser Problems

1️⃣ Blocked or dirty fins:
Dust, insects, or mud block airflow → reduces cooling performance.

2️⃣ Leaks:
Stone hits or corrosion can make small leaks in the aluminum tubes → loss of refrigerant.

3️⃣ Overheating:
If the cooling fan fails or airflow is poor, condenser can’t remove enough heat → A/C becomes weak.

4️⃣ Internal blockage:
Moisture or dirt inside can block flow → uneven cooling or high pressure on compressor side.

🧽 10. Maintenance Tips

✅ Clean the condenser regularly with low-pressure water (never high pressure).
✅ Check for oil stains — a sign of refrigerant leak.
✅ Ensure radiator and condenser fans work properly.
✅ Don’t cover the front grille — it blocks airflow.
✅ Replace the condenser if it gets damaged or corroded.

💡 Simple Summary for Students

👉 The condenser’s job is to remove heat from the refrigerant.
👉 It changes hot gas into a liquid by cooling it down with air.
👉 Located in front of the car, it works best when the car is moving or fans are on.
👉 Without a working condenser, the A/C cannot produce cool air.
#ACcondenser #condenser #acsystem

Skip the Carousel

1 2

2 weeks ago (edited) | [YT] | 3

Master Mechanic Abhishek

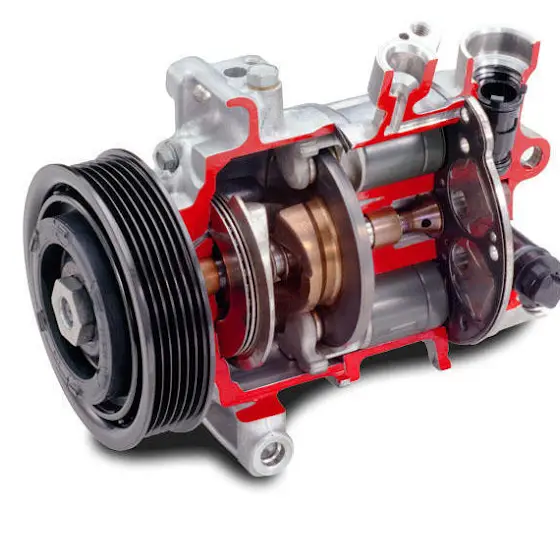

🧰 CAR A/C COMPRESSOR – COMPLETE DETAILED EXPLANATION
🔍 1. What is the A/C Compressor?

The compressor is called the heart of the car A/C system.
It pumps and circulates the refrigerant gas through the entire system — just like the heart pumps blood in the human body.

It takes in cold, low-pressure gas from the evaporator and compresses it into a hot, high-pressure gas.
This high-pressure gas then moves to the condenser, where it releases heat.

Without the compressor, the refrigerant cannot move or create cooling.

⚙️ 2. Main Function of the Compressor

👉 The compressor’s main function is to:

Suck low-pressure refrigerant gas from the evaporator.

Compress it (increase pressure and temperature).

Push it out to the condenser for cooling.

In short:

Low-pressure gas IN → High-pressure gas OUT


🧩 3. Construction (Main Parts of the Compressor)

Let’s look at all the important parts inside and outside the compressor and their simple functions 👇

🧱 (a) Compressor Body / Housing

Strong metal body that holds all internal parts.

Made from aluminum or steel to handle high pressure.

Has mounting points to fix on engine block.

🔄 (b) Drive Pulley

Connected to the engine crankshaft using a belt.

Spins whenever the engine is running.

Turns the compressor when the A/C is switched ON.

⚡ (c) Magnetic Clutch (Electromagnetic Clutch)

This clutch connects or disconnects the pulley to the compressor shaft.

When you turn ON A/C → electric current energizes clutch → clutch pulls in → compressor starts working.

When you turn OFF A/C → clutch releases → compressor stops.
✅ This saves engine power and fuel.

🔁 (d) Shaft

A steel rod that connects clutch/pulley to internal compressor parts.

Transfers motion to the pistons or scroll (depending on compressor type).

🌀 (e) Compressing Mechanism (Inside Compressor)

This is where the actual compression happens.
There are different types of compressors depending on how they compress refrigerant:

1. Piston Type (Reciprocating)

Has small pistons like an engine.

Pistons move up and down to compress gas.

A swash plate or wobble plate drives the pistons.

2. Scroll Type

Has two spiral scrolls — one fixed and one moving.

The moving scroll traps and squeezes gas into the center.

Quieter and more efficient than piston type.

3. Rotary / Vane Type

Has a rotor with sliding vanes that rotate inside a round chamber.

The vanes trap and compress the refrigerant gas.

Compact and used in small cars.

4. Variable Displacement Compressor

Can change its pumping capacity automatically.

Adjusts cooling according to cabin temperature — saves energy.

🔧 (f) Suction Port (Inlet)

The opening where low-pressure gas enters the compressor from the evaporator.

Inside this port is a reed valve or check valve to control flow direction.

🔩 (g) Discharge Port (Outlet)

The outlet through which high-pressure, hot gas leaves the compressor and goes to the condenser.

🛢️ (h) Oil Chamber / Lubrication System

Compressor contains a small quantity of special A/C oil (PAG oil).

This oil mixes with refrigerant and lubricates all moving parts.

Without proper lubrication → compressor can seize or wear out quickly.

🧰 (i) Seals and O-Rings

Prevent refrigerant and oil leakage.

Shaft seal stops leaks where the pulley shaft enters the compressor.

⚙️ (j) Valves (Suction & Discharge Valves)

Allow refrigerant to flow only one direction (in or out).

Prevent backflow during compression.

🔄 4. Step-by-Step Working Process

1️⃣ Suction:

Low-pressure, low-temperature refrigerant gas enters compressor through suction port.

2️⃣ Compression:

Inside, pistons or scroll squeeze the gas.

As gas compresses → pressure and temperature rise.

3️⃣ Discharge:

The hot, high-pressure gas exits through discharge port to condenser.

4️⃣ Cycle repeats continuously while A/C is running.


🌡️ Temperature and Pressure Inside the Compressor

On the inlet side (suction side), the refrigerant enters the compressor as a cool, low-pressure gas.
The pressure here is usually around 25 to 40 psi, and the temperature is about 5°C to 10°C.

As the compressor squeezes the gas, both the pressure and temperature increase.
When the refrigerant leaves through the outlet (discharge side), it becomes a hot, high-pressure gas.
The pressure at this stage is usually between 150 to 250 psi, and the temperature rises to around 70°C to 80°C.

In simple words —

The compressor takes in cool, low-pressure gas and pushes out hot, high-pressure gas.

⚠️ Common Compressor Problems.

1️⃣ Compressor not engaging:
This happens when the magnetic clutch doesn’t switch on.
The reason could be a bad clutch coil, low refrigerant pressure, or a blown fuse.
When this happens, the compressor won’t run, and you’ll get no cooling inside the car.

2️⃣ Noise or knocking sound:
If you hear strange noises from the compressor, it usually means low oil, worn bearings, or internal damage.
This makes the compressor run roughly and can lead to further damage if not fixed early.

3️⃣ Leak from the shaft seal:
Sometimes the shaft seal or O-ring gets worn out and allows refrigerant and oil to leak.
When this happens, the system slowly loses gas, and the cooling performance drops.

4️⃣ Seized compressor:
If the compressor is not getting enough lubrication or if dirt or moisture enters the system, it can lock up or seize.
When that happens, the A/C belt may slip, squeal, or even break, and the compressor stops turning.

5️⃣ Weak or poor cooling:
If the internal valves inside the compressor are stuck or damaged, or if the refrigerant pressure is too low, the compressor can’t build enough pressure.
This causes weak cooling from the A/C vents even when the system is running.

🧽 7. Maintenance Tips

✅ Run A/C for 5–10 mins weekly even in winter — keeps oil circulating.
✅ Always replace receiver-drier when changing compressor.
✅ Check and refill refrigerant & oil to correct level.
✅ Use only correct type of compressor oil (PAG or POE).
✅ Keep condenser clean so compressor doesn’t overheat.

#accompressor #compressor

Skip the Carousel

1 2 3 4

2 weeks ago (edited) | [YT] | 6

Master Mechanic Abhishek

Car Air Conditioning (A/C) System – Complete Working explained.

🚗 WHAT IS CAR A/C SYSTEM?

The A/C system in a car keeps the inside air cool and comfortable.
It removes heat and moisture from the air inside the car and sends cool, dry air through the vents.

It works using a special gas called refrigerant, which moves in a closed loop through pipes and different parts.
This gas changes between gas and liquid form again and again to carry heat.

🔄 BASIC PRINCIPLE

“Heat always moves from a high temperature area to a low temperature area.”

The system absorbs heat from the cabin air and releases it outside the vehicle.

🌡️ A/C System Temperature Flow – Step by Step

1️⃣ Evaporator outlet to Compressor inlet:
The refrigerant comes out of the evaporator as a low-pressure gas, around 5°C.
It has just absorbed heat from the cabin air, so the air becomes cool, and the refrigerant becomes gas.

2️⃣ Compressor outlet:
The compressor squeezes this gas, increasing its pressure and temperature.
Now the refrigerant is a high-pressure, high-temperature gas, around 70–80°C.

3️⃣ Condenser outlet:
The hot gas moves into the condenser, which releases heat to the outside air through metal fins.
As it cools down, the gas changes into a high-pressure liquid, with a temperature of about 35–40°C.

4️⃣ Expansion valve outlet:
The expansion valve suddenly reduces the pressure of this liquid refrigerant.
Due to the pressure drop, the refrigerant becomes very cold and turns into a low-pressure mist, around 5°C.

5️⃣ Back to Evaporator:
This cold refrigerant goes back to the evaporator, where it absorbs heat from the cabin air again.
The refrigerant changes back into a low-pressure gas (around 5–10°C) and the cycle continues — keeping the cabin cool.

⚙️ AIRFLOW PATH

1.Cabin air passes through dust/pollen filter.

2.Air goes through evaporator fins → loses heat to refrigerant.

3.Cool dry air comes out from AC vents into the cabin.

4. Refrigerant continues cycle to remove heat continuously.

🧊 MOISTURE REMOVAL

While cooling, the evaporator also condenses water vapor from air. That’s why you see water dripping under the car when A/C is running — it’s normal.

A/C System Pressure and Temperature Details

The A/C system has two main sides — the low-pressure side and the high-pressure side.

1️⃣ Low-Pressure Side (Suction Side):
This part includes the evaporator and the suction line going to the compressor.
The refrigerant here is cool and low-pressure gas.
The pressure is usually between 25 to 40 psi, and the temperature stays around 0°C to 10°C.
This is where the refrigerant absorbs heat from the cabin air.

2️⃣ High-Pressure Side (Discharge Side):
This part includes the compressor outlet and the condenser.
Here, the refrigerant is hot and under high pressure.
The pressure is usually between 150 to 250 psi, and the temperature is around 60°C to 80°C.
This is where the refrigerant releases heat to the outside air.


🌬️ IN SIMPLE FLOW

Compressor ➜ Condenser ➜ Receiver ➜ Expansion Valve ➜ Evaporator ➜ Compressor (again)

✅ FINAL RESULT

1. Inside air becomes cool (6–10°C)

2. Moisture removed (dry air)

3. The cabin feels comfortable and fresh.

#acsystem

2 weeks ago (edited) | [YT] | 2

Master Mechanic Abhishek

❄️ Dual Pressure Switch – Function in Car A/C System

🔧 1. Purpose

The dual pressure switch is a safety and control device used in many automotive air conditioning systems.
It monitors both high and low refrigerant pressures and protects the A/C compressor from damage.


---

⚙️ 2. Main Function

It performs two opposite but equally important tasks:

Condition Pressure Side Switch Action Purpose / Result

Low Pressure (Too little refrigerant or leak) Low side Opens circuit (turns OFF compressor clutch) Prevents compressor from running dry — avoids lack of lubrication and internal damage
High Pressure (Overcharge or airflow restriction) High side Opens circuit (turns OFF compressor clutch) Prevents system from over-pressurizing, avoiding hose burst or compressor overload


When pressure returns to normal range, the switch closes again, allowing the compressor clutch to engage.


---

🔋 3. Operating Pressure Range (Typical Values)

Function Approx. Pressure (psi)

Low pressure cut-off 25–30 psi
Low pressure cut-in 40–45 psi
High pressure cut-off 400–450 psi
High pressure cut-in 250–300 psi


(Values vary depending on vehicle and refrigerant type — R134a, R1234yf, etc.)


---

📍 4. Location

The dual pressure switch is normally installed on the high-pressure line, usually:

On the receiver-drier, accumulator, or discharge line between compressor and condenser.

It will have 2 or 3 electrical terminals (older systems use 2; newer ones may have 3 or 4 for signal feedback).



---

🧠 5. How It Works Electrically

The switch is wired in series with the A/C compressor clutch relay.

When the pressure is within safe limits, the switch closes, completing the circuit → Compressor runs.

If pressure is too low or too high, it opens, breaking the circuit → Compressor stops immediately.



---

⚠️ 6. Importance in System Protection

Prevents compressor damage due to refrigerant loss

Prevents system overpressure and bursting

Ensures efficient cooling by maintaining proper refrigerant cycle conditions



---

🧰 7. Quick Diagnostic Tip

To test:

1. Locate the dual pressure switch (usually on the high side line).


2. Check continuity with a multimeter:

Normal pressure = continuity present (switch closed).

Low/high pressure = open circuit (no continuity).



3. Never bypass the switch permanently — only temporarily for test purposes and with gauges connected.

#acdualpressureswitch #dualpressureswitch

Skip the Carousel

1 2 3

2 weeks ago (edited) | [YT] | 4

Master Mechanic Abhishek

"How to Test Battery, Alternator, and Cranking Voltage"


⚡️1. TESTING BATTERY VOLTAGE (Static Test – Engine OFF)

🧰 Tools Required:

Digital Multimeter (DC Voltage mode)

Safety gloves and eye protection


🔌 Procedure:

1. Set the Multimeter:
Turn the dial to DC Voltage (20V range).


2. Connect the Leads:

Red lead → Battery Positive (+) terminal

Black lead → Battery Negative (−) terminal



3. Read the Voltage:
Observe the reading on the display.



📊 Interpretation:

Battery Voltage Condition of Battery

12.6V – 12.8V Fully Charged (Good)
12.4V – 12.5V 75% Charged
12.2V – 12.3V 50% Charged
12.0V or below Weak / Needs Charging
Below 11.8V Discharged / Faulty Battery


> ✅ Tip: Before testing, make sure the ignition and all accessories (lights, AC, radio) are OFF for accurate results.




---

⚙️2. TESTING ALTERNATOR OUTPUT VOLTAGE (Charging Test)

🧰 Tools Required:

Digital Multimeter (DC Voltage mode)


🔌 Procedure:

1. Start the Engine.


2. Set the Multimeter to DC Voltage (20V).


3. Connect Leads:

Red → Battery Positive (+) terminal

Black → Battery Negative (−) terminal



4. Check the Reading at Idle (Without Load):
Note the voltage at idle speed (around 800–900 rpm).



📊 Normal Output (Without Load):

Voltage Condition

13.8V – 14.4V Normal charging
Above 14.8V Overcharging (Faulty regulator)
Below 13.5V Undercharging (Faulty alternator or belt)



---

💡3. TESTING ALTERNATOR OUTPUT WITH LOAD

🧰 Tools Required:

Multimeter (DC Voltage)

Apply electrical load (headlights, AC, blower, etc.)


🔌 Procedure:

1. Keep the Engine Running.


2. Switch ON major electrical loads (headlights, AC, blower, wipers).


3. Observe the Multimeter Reading.



📊 Expected Reading (With Load):

Voltage Condition

13.5V – 14.2V Normal performance
Below 13.2V Weak alternator or loose belt
Above 14.8V Voltage regulator issue


> ✅ Tip: Voltage should remain stable even when loads are applied. A large drop indicates alternator weakness.




---

🔋4. TESTING CRANKING VOLTAGE (Starter Motor Load Test)

🧰 Tools Required:

Digital Multimeter (DC Voltage mode)


🔌 Procedure:

1. Set the Multimeter to DC Voltage (20V).


2. Connect the Leads:

Red → Battery Positive (+) terminal

Black → Battery Negative (−) terminal



3. Observe the Voltage While Cranking the Engine.
(Ask someone to start the engine and watch the multimeter.)



📊 Interpretation:

Voltage During Cranking Condition

10.0V – 10.5V Normal (Good Battery)
9.5V – 9.9V Weak Battery / High Starter Current
Below 9.0V Very Weak Battery or Faulty Starter


> ⚠️ Note: If voltage drops below 9V, the engine may crank slowly or fail to start.




---

🧭 Summary Table

Test Type Engine Condition Normal Reading Fault Indication

Battery Voltage Engine OFF 12.6–12.8V <12.2V = Weak
Alternator Output (No Load) Engine Running 13.8–14.4V <13.5V or >14.8V
Alternator Output (With Load) Engine Running + Electrical Load 13.5–14.2V <13.2V = Weak
Cranking Voltage During Starting 10–10.5V <9V = Bad Battery/Starter



---

🧰 Additional Tips:

Clean battery terminals before testing.

Check alternator belt tension — a loose belt reduces output.

Always perform tests in correct order:
1️⃣ Battery voltage → 2️⃣ Cranking → 3️⃣ Charging (no load) → 4️⃣ Charging (with load)

#batterytesting #battery #alternatortesting #alternator #crakingvoltage #crankingtesting

2 weeks ago (edited) | [YT] | 6

Master Mechanic Abhishek

🔋 BATTERY DRAIN TEST (PARASITIC CURRENT DRAW TEST)

📘 1. Objective

To check if there is any unwanted or excessive current draw from the battery when the ignition switch and all electrical loads are OFF — which may cause battery discharge overnight or within a few days.


---

⚙️ 2. Purpose

To detect parasitic current (small, continuous current flow) in a vehicle’s electrical system.

To identify faulty components, wiring, or accessories that consume power when the vehicle is off.

To prevent premature battery drain and ensure normal standby current draw.



---

🔧 3. Tools Required

Tool Function

Digital Multimeter (DMM) To measure current (in milliamps or amps)
Insulated Spanners To remove and reconnect battery terminals
Fuse puller To remove individual fuses safely
Service Manual or Fuse Chart To identify circuit locations
Safety gloves & goggles For personal protection



---

⚠️ 4. Safety Precautions

1. Ensure ignition is OFF and key removed.


2. All doors, lights, and accessories should be OFF (use door latch trick if needed to keep door switches off).


3. Do not crank the engine or turn ON any electrical load during the test.


4. Set multimeter to correct current range before connecting.


5. Be cautious while disconnecting the battery negative terminal (to avoid spark).


6. Wait for modules to enter sleep mode (usually 10–30 minutes) before measuring.




---

🧰 5. Test Setup and Procedure

Step 1: Vehicle Preparation

Turn off ignition and remove key.

Close all doors, boot, and bonnet lights (use door latch trick).

Wait for around 15–30 minutes for the ECU and electronic systems to enter sleep mode.



---

Step 2: Connect Multimeter

Set multimeter to DC amps (A or mA) mode.

Disconnect the negative (-) terminal of the battery.

Connect the multimeter in series between:

Battery negative post, and

The disconnected battery cable.


Connection:

Battery (-) Post → Multimeter (Positive Lead)
Multimeter (Negative Lead) → Battery Negative Cable


✅ This allows the current to flow through the meter so it can measure any drain.


---

Step 3: Observe Current Reading

Initially, you may see a high reading (e.g., 2–3A) — this is normal while modules are awake.

After a few minutes, the reading should drop as systems shut down.



---

📉 6. Standard Current Draw Specification

Vehicle Type Normal Standby Current Draw

Older (non-ECU vehicles) 20–50 mA
Modern ECU-equipped vehicles 30–80 mA
Luxury / high-end vehicles Up to 100 mA


👉 If the current draw exceeds 80–100 mA after sleep mode, there is a parasitic drain.


---

🧩 7. Identifying the Faulty Circuit

Step 1: Note the Abnormal Current

Suppose your multimeter shows 0.35A (350 mA) — that’s excessive.

Step 2: Pull Fuses One by One

Remove one fuse at a time from the fuse box.

Watch the multimeter reading:

If the current suddenly drops to normal (e.g., from 350 mA → 30 mA), the circuit linked to that fuse is the cause.



Step 3: Identify Faulty Component

Refer to the vehicle’s fuse chart to know what that fuse controls.

Check the related circuit or component — for example:

Glove box light staying ON

Boot light switch stuck

Faulty relay (stuck closed)

Aftermarket accessories (music system, tracker, etc.)




---

🧠 8. Common Causes of Battery Drain

Cause Description

Glove box or trunk light ON Switch or lamp fault
Faulty relay Relay contacts stuck closed
ECU not entering sleep mode Software or sensor fault
Aftermarket devices GPS, amplifier, dashcam, etc.
Shorted alternator diode Causes reverse current flow
Faulty power window / door module Keeps system active



---

⚙️ 9. Confirmation

After repairing or removing the faulty circuit, repeat the test.

Ensure final current draw is within normal range (below 80 mA).

Reconnect the negative terminal securely.



---

📋 10. Reporting (Sample Format)

Parameter Observation

Battery Voltage Before Test 12.6V
Standby Current (after sleep) 320 mA
Normal Limit 80 mA
Fuse Found Draining FUSE #23 – Audio System
Cause Identified Amplifier relay stuck
Final Current After Rectification 40 mA



---

🧾 11. Conclusion

The battery drain test helps ensure the vehicle’s electrical system is not consuming excessive current when off.

This prevents flat battery complaints, improves reliability, and maintains battery life.
#battery #batterydraintest

2 weeks ago (edited) | [YT] | 3

Master Mechanic Abhishek

What is EGR?
EGR stands for Exhaust Gas Recirculation.
It’s a system designed to reduce nitrogen oxide (NOx) emissions from the engine by recirculating some of the exhaust gases back into the intake system.


⚙️ **Why NOx Forms**

When the air-fuel mixture burns in the engine:

* Combustion temperature can reach **above 2,500°C**.
* At this high temperature, **nitrogen (N₂)** and **oxygen (O₂)** from the air combine to form **nitrogen oxides (NOx)** — which are harmful pollutants.

So, controlling combustion temperature helps **reduce NOx**.


🔁 **EGR Basic Working Principle**

EGR system works by **sending a small amount of exhaust gas** back into the **intake manifold**, mixing it with **fresh air and fuel**.

Here’s how it works step-by-step:

1. Exhaust Gas Extraction

A portion of exhaust gases is taken from the **exhaust manifold**.

2. EGR Valve Operation**

The EGR valve** controls the flow of these gases.
The valve opens or closes depending on **engine speed, load, and temperature**.

3. Gas Cooling (in modern systems)

The recirculated exhaust gas passes through an **EGR cooler** (like a mini radiator).


* This **reduces its temperature** before entering the intake — making the process more efficient.

4. **Mixing with Intake Air**

* The cooled exhaust gas mixes with the incoming **fresh air** in the intake manifold.

5. **Combustion Process**

* The mixed air-fuel-exhaust charge enters the combustion chamber.
* Because exhaust gas contains **less oxygen**, combustion temperature decreases.

6. **Result**

* Lower combustion temperature = **less NOx formation**.
* Engine runs smoother with **reduced emissions**.

🔧 **Main Components**


1. **EGR Valve** – Controls gas flow (mechanical, vacuum, or electronically controlled).
2. **EGR Cooler** – Lowers exhaust gas temperature before recirculation.
3. **Vacuum Lines / Solenoids** – For vacuum-controlled systems.
4. **Sensors (MAP, EGR Position, Temperature)** – Help ECU adjust EGR flow precisely.
5. **ECU (Engine Control Unit)** – Commands EGR valve operation based on driving conditions.

🚗 **When EGR Operates**

| Engine Condition | EGR Operation |
| -------------------------------- | ----------------------------- |
| **Idle** | OFF (to prevent rough idling) |
| **Low Load / Cruise** | ON (to reduce NOx) |
| **Full Throttle / Acceleration** | OFF (for maximum power) |
| **Cold Start** | OFF (to help warm up faster) |

✅ **Benefits**

* Reduces **NOx emissions** (main purpose)
* Improves **emission compliance**
* Slightly improves **fuel efficiency** (in some cases)
* Helps **engine longevity** by controlling combustion heat

⚠️ **Common EGR Problems**

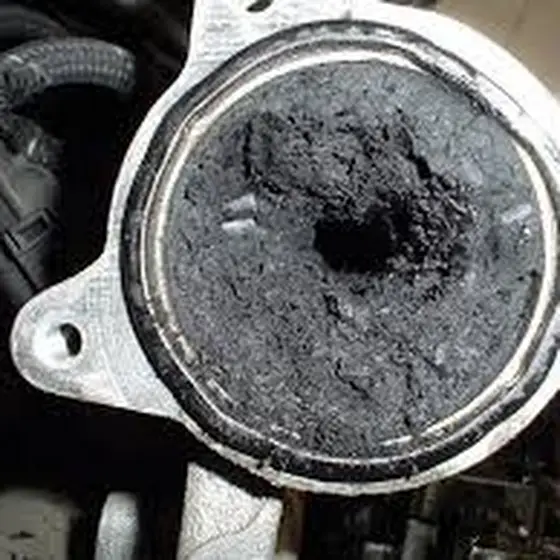

* **Carbon buildup** (valve sticking)
* **EGR cooler leakage** (in diesel engines)
* **Poor idling or hesitation** (if EGR stuck open)
* **Check engine light (MIL ON)**

#egr #egrfunction

2 weeks ago (edited) | [YT] | 1

Master Mechanic Abhishek

🌫️ What is EGR? https://youtu.be/_L-Ql_7u37g

EGR stands for Exhaust Gas Recirculation.
It’s a system designed to reduce nitrogen oxide (NOx) emissions from the engine by recirculating some of the exhaust gases back into the intake system.

⚙️ **Why NOx Forms**

When the air-fuel mixture burns in the engine:

* Combustion temperature can reach **above 2,500°C**.
* At this high temperature, **nitrogen (N₂)** and **oxygen (O₂)** from the air combine to form **nitrogen oxides (NOx)** — which are harmful pollutants.

So, controlling combustion temperature helps **reduce NOx**.

🔁 **EGR Basic Working Principle**

EGR system works by **sending a small amount of exhaust gas** back into the **intake manifold**, mixing it with **fresh air and fuel**.

Here’s how it works step-by-step:

1. Exhaust Gas Extraction
A portion of exhaust gases is taken from the **exhaust manifold**.

2. EGR Valve Operation
The EGR valve** controls the flow of these gases.
The valve opens or closes depending on **engine speed, load, and temperature**.

3. Gas Cooling (in modern systems)
The recirculated exhaust gas passes through an **EGR cooler** (like a mini radiator).
This **reduces its temperature** before entering the intake — making the process more efficient.

4. **Mixing with Intake Air**
The cooled exhaust gas mixes with the incoming **fresh air** in the intake manifold.

5. **Combustion Process**
* The mixed air-fuel-exhaust charge enters the combustion chamber.
* Because exhaust gas contains **less oxygen**, combustion temperature decreases.

6. **Result**
* Lower combustion temperature = **less NOx formation**.
* Engine runs smoother with **reduced emissions**.

🔧 **Main Components**
1. **EGR Valve** – Controls gas flow (mechanical, vacuum, or electronically controlled).
2. **EGR Cooler** – Lowers exhaust gas temperature before recirculation.
3. **Vacuum Lines / Solenoids** – For vacuum-controlled systems.
4. **Sensors (MAP, EGR Position, Temperature)** – Help ECU adjust EGR flow precisely.
5. **ECU (Engine Control Unit)** – Commands EGR valve operation based on driving conditions.

🚗 **When EGR Operates**

| Engine Condition | EGR Operation |
| -------------------------------- | ----------------------------- |
| **Idle** | OFF (to prevent rough idling) |
| **Low Load / Cruise** | ON (to reduce NOx) |
| **Full Throttle / Acceleration** | OFF (for maximum power) |
| **Cold Start** | OFF (to help warm up faster) |

✅ **Benefits**

* Reduces **NOx emissions** (main purpose)
* Improves **emission compliance**
* Slightly improves **fuel efficiency** (in some cases)
* Helps **engine longevity** by controlling combustion heat

⚠️ **Common EGR Problems**

* **Carbon buildup** (valve sticking)
* **EGR cooler leakage** (in diesel engines)
* **Poor idling or hesitation** (if EGR stuck open)
* **Check engine light (MIL ON)**

#egr #egrsystem

Skip the Carousel

1 2 3 4 5

2 weeks ago (edited) | [YT] | 4

Master Mechanic Abhishek

⚙️ VGT Turbocharger (Variable Geometry Turbocharger) https://youtu.be/YufqilIRJGU
(Also known as VNT – Variable Nozzle Turbocharger)

🚗 1️⃣ What is a Turbocharger? (Quick Recall)

A turbocharger increases the engine’s power by using exhaust gases to drive a turbine connected to a compressor that forces more air into the engine.
But in a normal (WGT) turbo, the boost pressure depends on engine speed.
At low RPM, exhaust flow is weak → slow boost build-up (turbo lag).
At high RPM, exhaust flow is high → too much boost (needs control).

This problem led to the invention of the VGT.


---

🧩 2️⃣ What is a VGT Turbocharger?

A Variable Geometry Turbocharger (VGT) has movable vanes inside the turbine housing that change their angle automatically according to engine speed and load.

These adjustable vanes control the flow and speed of exhaust gases hitting the turbine wheel — giving instant boost at low RPM and controlled boost at high RPM.


---

⚙️ 3️⃣ Main Components of VGT Turbocharger

Component Function

Turbine Wheel & Housing Converts exhaust gas energy into rotational energy
Compressor Wheel & Housing Compresses intake air to increase oxygen supply
Center Shaft Connects turbine and compressor wheels
Variable Vanes (Adjustable Blades) Control the exhaust gas flow angle
Vane Ring / Nozzle Assembly Holds vanes around turbine inlet
Actuator (Vacuum / Electric / Hydraulic) Adjusts vane angle based on ECU signal
Position Sensor Sends vane position feedback to ECU
Bearing System Allows smooth high-speed rotation



---

🔄 4️⃣ Working Principle of VGT Turbocharger

🧠 Controlled by:

Engine Control Unit (ECU) via sensors (MAP, RPM, temperature).

ECU sends signals to actuator to adjust vane position.


Let’s break it down step-by-step 👇


---

🔹 Step 1: Low Engine Speed / Low Load

Exhaust flow is weak.

ECU closes the vanes (small angle) → narrows the gas passage.

Narrow path increases gas velocity before hitting turbine blades.

High velocity → turbine spins faster → quick boost even at low RPM.


➡️ Result:
Instant turbo response, reduced turbo lag, and more torque at low speed.


---

🔹 Step 2: Medium Engine Speed

Exhaust flow increases.

ECU slightly opens vanes to keep turbine speed stable.

Boost pressure remains steady and efficient.


➡️ Result:
Smooth acceleration and stable power.


---

🔹 Step 3: High Engine Speed / High Load

Exhaust pressure becomes very high.

ECU fully opens vanes → wider passage → more gas bypass around turbine.

Reduces turbine speed → prevents overboost or turbo damage.


➡️ Result:
Controlled boost, safe operation, and longer turbo life.


---

⚡ 5️⃣ Example of Operation Table

Engine Speed Vane Position Exhaust Flow Turbine Speed Boost Pressure

Low RPM Nearly closed Fast velocity High Boost builds quickly
Medium RPM Partially open Moderate flow Controlled Stable
High RPM Fully open Large flow Controlled Limited



---

🧰 6️⃣ Actuation Methods (Vane Control Types)

Type Description Example

Vacuum Actuator (Mechanical) Uses vacuum and diaphragm; ECU controls via solenoid Early diesel engines
Electronic Actuator (E-Actuator) Uses electric motor + position sensor; fully ECU-controlled Modern CRDI engines
Hydraulic Actuator Uses oil pressure (rare) Heavy-duty engines



---

⚙️ 7️⃣ VGT Turbocharger vs. WGT Turbocharger

Feature WGT (Wastegate Turbo) VGT (Variable Geometry Turbo)

Boost Control Wastegate valve Adjustable vanes
Low RPM Response Slow (turbo lag) Fast (quick boost)
Efficiency Moderate High
Control System Pneumatic Electronic / Vacuum
Complexity Simple Complex
Cost Low High
Applications Small engines Modern diesel & performance engines



---

🔋 8️⃣ Advantages of VGT Turbocharger

✅ Quick Response: Almost no turbo lag.
✅ Better Fuel Efficiency: Optimized boost at all speeds.
✅ High Torque at Low RPM: Improves drivability and pulling power.
✅ Smooth Power Delivery: Constant boost pressure across speed range.
✅ Lower Emissions: Better combustion due to optimized air–fuel mixture.
✅ Higher Engine Performance: More power without increasing displacement.


---

⚠️ 9️⃣ Disadvantages of VGT Turbocharger

❌ More Expensive: Costly than WGT turbo.
❌ Complex Mechanism: Needs ECU control and precise sensors.
❌ Maintenance Sensitive: Vanes can jam due to carbon deposits (especially in diesel engines).
❌ Requires Clean Oil and Exhaust System.


---

🧠 10️⃣ Practical Example

👉 At low speed: Vanes are closed → small opening → high exhaust velocity → faster turbine spin → instant boost.
👉 At high speed: Vanes open → reduces exhaust pressure → prevents over-boost.

Result: Engine gets strong low-end torque + safe high-speed power.


---

🚘 11️⃣ Real-World Applications

Used in modern diesel engines and some high-performance petrol engines:

Maruti Suzuki 1.3L DDiS (Fiat Multijet)

Hyundai CRDi Diesel Engines

Toyota Innova Crysta 2.4 Diesel

Tata Safari / Hexa / Harrier

VW / Skoda TDI engines

Some BMW and Audi turbo petrol engines



---

🔩 12️⃣ Maintenance Tips

🔸 Keep oil clean and use manufacturer-grade oil.
🔸 Avoid sudden shutdown after high-speed driving (cool down the turbo).
🔸 Regularly check actuator operation.
🔸 Use quality diesel fuel to prevent carbon buildup on vanes.


---

🔄 13️⃣ Summary

Step Action Effect

Low RPM Vanes closed → gas velocity increases Turbo spins fast → instant boost
Medium RPM Vanes open slightly Steady boost
High RPM Vanes wide open Prevents overboost


Conclusion:
The VGT Turbocharger is an intelligent, variable-flow turbo that adjusts automatically to maintain ideal boost pressure across all engine speeds — delivering maximum efficiency, reduced lag, and improved performance.

#vgtturbocharger #vgt #turbocharger

Skip the Carousel

1 2 3

2 weeks ago (edited) | [YT] | 6
