Understanding Screw Thread Terminology – The Backbone of Precision Engineering🔩
Screw threads may seem small, but they play a massive role in mechanical assemblies, holding everything together with accuracy and strength. Mastering thread terminology is essential for every mechanical engineer, designer, and technician to ensure perfect fits and smooth functionality.

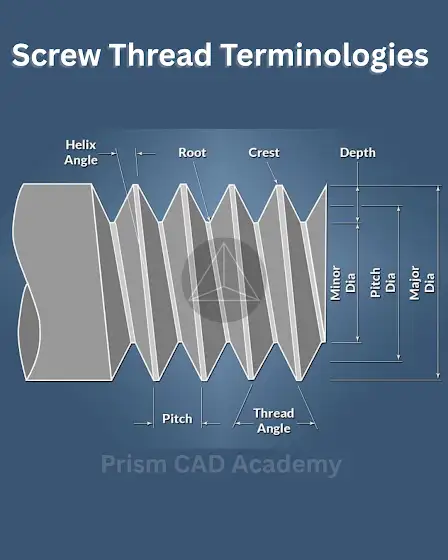

Here are the key Screw Thread Terminologies every engineer must know:
👉 Major Diameter (Nominal Diameter): The largest diameter of the thread. 👉 Minor Diameter (Root Diameter): The smallest diameter of the thread. 👉 Pitch Diameter: A theoretical diameter where the thread thickness equals the space between threads. 👉 Pitch: The distance from a point on one thread to the corresponding point on the next. 👉 Lead: The distance a screw thread advances axially in one turn. (Equal to pitch for single-start threads) 👉 Thread Angle: The angle between the flanks of the thread (usually 60° for metric threads). 👉 Crest: The top surface joining the flanks of the thread. 👉 Root: The bottom surface joining the flanks. 👉 Flank: The angled surface connecting the crest and the root. 👉 Helix Angle: The angle formed by the thread’s path around the cylinder. 👉 TPI (Threads Per Inch): Used in imperial threads; defines thread count per inch. 👉 Handedness: Right-hand or left-hand thread, indicating the direction of rotation to tighten.
🔧 These terms are critical in design, manufacturing, and quality control, ensuring the reliability and safety of mechanical joints.
Prism CAD Academy
Understanding Screw Thread Terminology – The Backbone of Precision Engineering🔩
Screw threads may seem small, but they play a massive role in mechanical assemblies, holding everything together with accuracy and strength. Mastering thread terminology is essential for every mechanical engineer, designer, and technician to ensure perfect fits and smooth functionality.
Here are the key Screw Thread Terminologies every engineer must know:
👉 Major Diameter (Nominal Diameter): The largest diameter of the thread.
👉 Minor Diameter (Root Diameter): The smallest diameter of the thread.
👉 Pitch Diameter: A theoretical diameter where the thread thickness equals the space between threads.
👉 Pitch: The distance from a point on one thread to the corresponding point on the next.
👉 Lead: The distance a screw thread advances axially in one turn. (Equal to pitch for single-start threads)
👉 Thread Angle: The angle between the flanks of the thread (usually 60° for metric threads).
👉 Crest: The top surface joining the flanks of the thread.
👉 Root: The bottom surface joining the flanks.
👉 Flank: The angled surface connecting the crest and the root.
👉 Helix Angle: The angle formed by the thread’s path around the cylinder.
👉 TPI (Threads Per Inch): Used in imperial threads; defines thread count per inch.
👉 Handedness: Right-hand or left-hand thread, indicating the direction of rotation to tighten.
🔧 These terms are critical in design, manufacturing, and quality control, ensuring the reliability and safety of mechanical joints.
---
