We've talked about why we need check valves on pump discharge, but here's what can go wrong if you place them in the wrong position. This can be found in the below link:
youtube.com/shorts/Ha997jKYDBI
The Critical Placement Decision 🎯

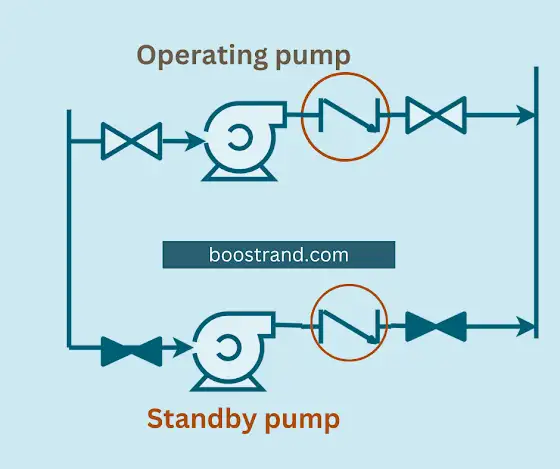

When installing a check valve UPSTREAM of the discharge isolation valve (between pump and isolation valve), you're making a strategic choice that impacts:
⚠️ Maintenance Efficiency
If your check valve needs repair or replacement, you can isolate just that section without affecting the entire system. Placing it downstream would require shutting down larger portions of your system or even draining tanks.
⚠️ Equipment Protection
The check valve immediately protects your pump from reverse flow and potential water hammer damage - especially critical in multi-pump systems where one pump might shut down while others continue operating. In case of compressors, it's even more critical.
⚠️ Proper Isolation
During pump maintenance, having the isolation valve downstream means you can work on the pump without pressurized fluid in your work area.
The Reality Check on Check Valves ⚡
Here's the scary part: check valves can fail silently. Since they only close when backflow occurs, a stuck-open valve might go unnoticed for months—until the one moment you desperately need it.
Why are they prone to failure?
• Constant movement = wear on seats and seals
• Debris sensitivity prevents proper sealing
• Can't provide true positive isolation like manual valves
That's why we place isolation valves downstream of the check valve—when the isolation valve is closed, it reduces backflow incidents, making the check valve a second line of defense rather than the sole protection.
API 521 Best Practices đź“‹
For critical applications:
• Install double check valves in series
• Use different valve types (e.g., piston + spring-loaded split wedge)
• Implement firm inspection procedures
• Consider additional protection layers for high-consequence scenarios
Remember: proper valve arrangement isn't just about following standards—it's about understanding the "why" behind each decision.
What valve arrangement challenges have you faced in your systems? Share your experiences below! 👇
Boostrand ChemE
We've talked about why we need check valves on pump discharge, but here's what can go wrong if you place them in the wrong position. This can be found in the below link:
youtube.com/shorts/Ha997jKYDBI
The Critical Placement Decision 🎯
When installing a check valve UPSTREAM of the discharge isolation valve (between pump and isolation valve), you're making a strategic choice that impacts:
⚠️ Maintenance Efficiency
If your check valve needs repair or replacement, you can isolate just that section without affecting the entire system. Placing it downstream would require shutting down larger portions of your system or even draining tanks.
⚠️ Equipment Protection
The check valve immediately protects your pump from reverse flow and potential water hammer damage - especially critical in multi-pump systems where one pump might shut down while others continue operating. In case of compressors, it's even more critical.
⚠️ Proper Isolation
During pump maintenance, having the isolation valve downstream means you can work on the pump without pressurized fluid in your work area.
The Reality Check on Check Valves ⚡
Here's the scary part: check valves can fail silently. Since they only close when backflow occurs, a stuck-open valve might go unnoticed for months—until the one moment you desperately need it.
Why are they prone to failure?
• Constant movement = wear on seats and seals
• Debris sensitivity prevents proper sealing
• Can't provide true positive isolation like manual valves
That's why we place isolation valves downstream of the check valve—when the isolation valve is closed, it reduces backflow incidents, making the check valve a second line of defense rather than the sole protection.
API 521 Best Practices đź“‹
For critical applications:
• Install double check valves in series
• Use different valve types (e.g., piston + spring-loaded split wedge)
• Implement firm inspection procedures
• Consider additional protection layers for high-consequence scenarios
Remember: proper valve arrangement isn't just about following standards—it's about understanding the "why" behind each decision.
What valve arrangement challenges have you faced in your systems? Share your experiences below! 👇
#ProcessSafety #MechanicalEngineering #PumpMaintenance #IndustrialSafety #CheckValves #API521 #ProcessEngineering #MaintenanceBestPractices
